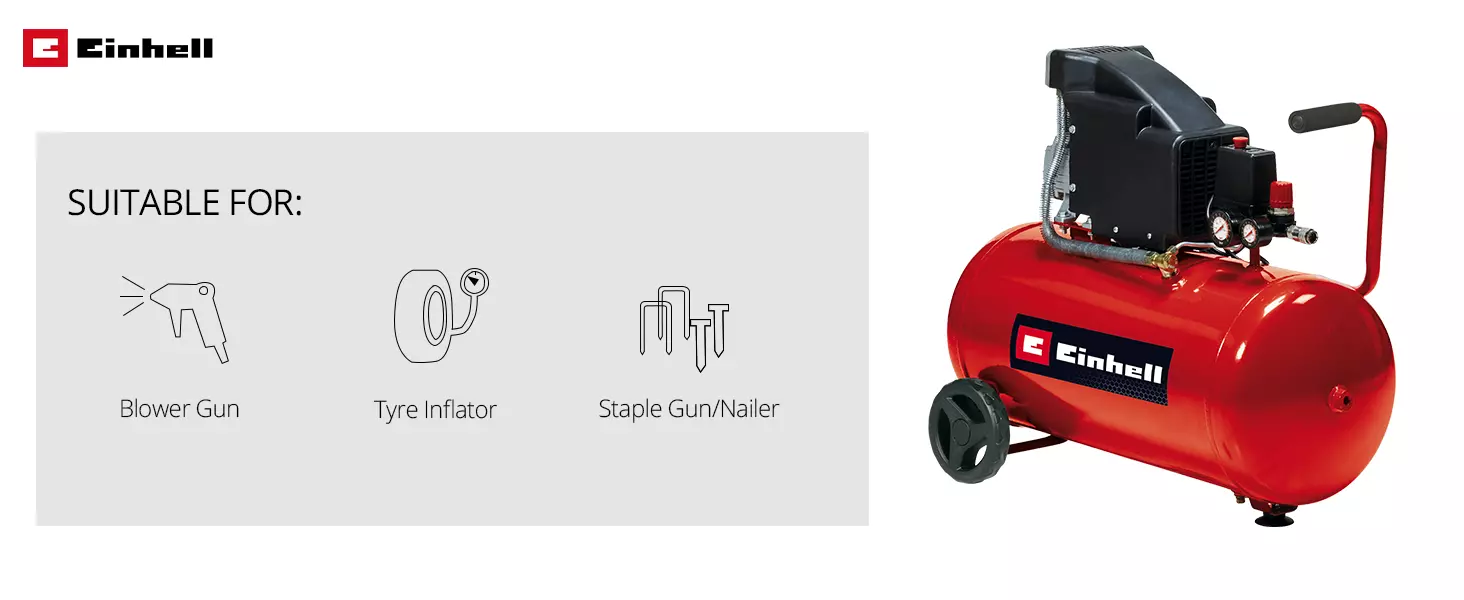

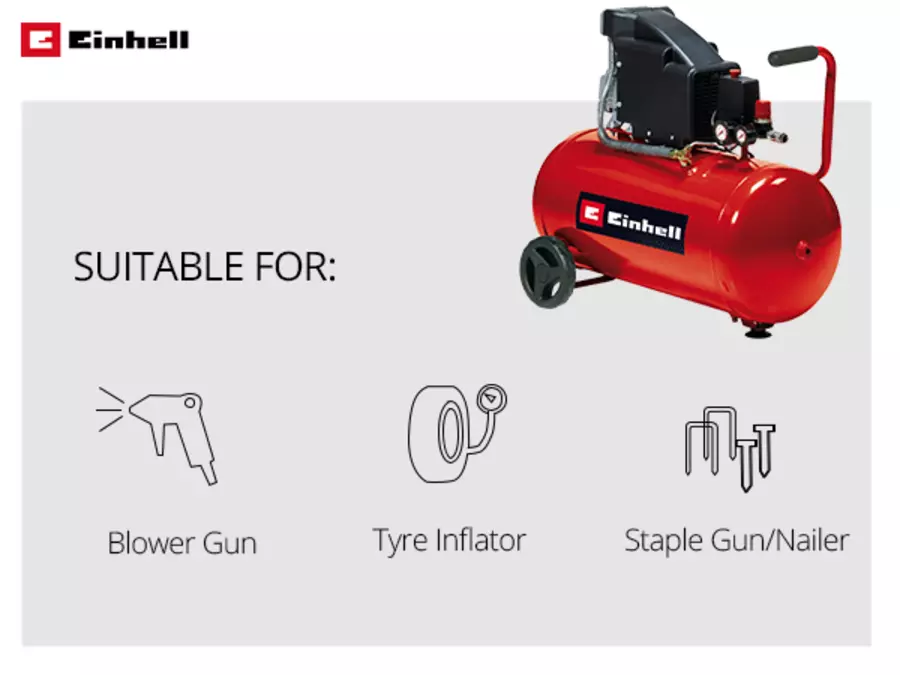

Air Compressor

TC-AC 190/50/8

Item no.: 4007332EAN: 4006825651720
  • Oil lubrication contributes to long life
  • Oil level check through inspection window
  • The 50l tank provides sufficient air reserves
  • Applications up to 8 bar can be set using the pressure regulator
  • Pressure gauge & quick-release coupling for regulated pressure
  • Large pressure gauge for unregulated pressure
  • Rubber wheels and carrying handle for an easy transport
  • Foot with rubber pad for vibration dampening
  • 10 years warranty against perforation corrosion of the tank
  • Non-return valve, safety valve
  • The drainage screw enables user-friendly maintenance
See more information
productimage
Article description

The Einhell compressor TC-AC 190/50/8 serves up the pressure you need on all jobs around the home and in the workshop or garage. Be it lacquering, painting, impregnating wood, blow-cleaning or sand-blasting: this compressor is a versatile and untiring helper on renovation and restoration projects, and it even has enough air left over for inflating tires, balls or air mattresses. Oil lubrication contributes to a long life, and there is an inspection window where you can easily check the oil level. For sufficient air reserves there is a 50 l tank. Many applications up to 8 bar can be set using the pressure regulator. A pressure gauge is used for checking the regulated working pressure that can be easily tapped at the quick-release coupling. There is also a large pressure gauge for the unregulated tank pressure. A non-return valve and a safety valve contribute to additional safety. The drainage screw on the compressor enables user-friendly maintenance. For easy transportation there are rubberized wheels and a carrying handle. The foot with rubber pad dampens vibration during operation. Einhell provides a 10-year warranty against perforation corrosion of the tank.

Technical details

Mains supply220-240 V | 50 Hz
Max. engine power (S2 | S2time)1500 W 2 PS 15 min
Engine speed2850 min^-1
Pump speed2850 min^-1
Suction capacity165 L/min
Output power at 0 bar110 L/min
Output power at 4 bar75 L/min
Output power at 7 bar55 L/min
Max. operating pressure8 bar
Tank volume50 L
Number of cylinders1 Pieces
Sound pressure level; Lpa75 dB (A)
Sound power level; Lwa97 dB (A)
